A lighter injection-molded part does not automatically cost less. The commercial result depends on how much approved resin is removed, whether the selected grade or reinforcement changes material and processing economics, how geometry affects filling and cooling, and whether the mold needs new steel, inserts, gates, cooling or validation. For an overseas OEM, the useful question is not only ‘What percentage of weight can be saved?’ It is ‘Which design gives the required function and evidence at the lowest total program cost under the same volume, resin, quality and logistics assumptions?’
This guide gives procurement, engineering and quality teams a way to compare a baseline with lightweight concepts. Treat every estimate as dependent on resin, fiber loading, geometry, processing, environment, annual volume, tool state and customer specifications. A supplier quotation should expose those dependencies rather than promise universal weight savings, lower unit cost or shorter cycle time.
Requirement: preserve the released functional, interface, appearance, safety, environmental and customer requirements unless their owner approves a change. Recommendation: request a separated cost model for material, cycle, tooling, quality and validation, then approve lightweighting only at defined evidence gates.
01
1. Start with a controlled baseline before asking for savings
Freeze the comparison boundary first: part number and revision, net and total shot mass, resin manufacturer and grade, filler or fiber loading, color, runner concept, cavity count, annual and lifetime volume, machine assumption, cosmetic zones, critical dimensions, service temperature, chemical or moisture exposure, and downstream assembly. Record how mass is measured and whether the number includes trim, gate vestige, inserts or only the accepted part. Without this baseline, two suppliers can report different ‘savings’ while quoting different products.
Separate requirements from recommendations. The requirement is the approved product performance, interface, appearance, compliance and acceptance method. A thinner wall, a cored section, a rib layout, a lower-density resin, a foamed process or a changed gate is a recommendation until the product owner accepts it. Ask the supplier to identify each affected requirement, assumption, risk, and proposed verification. A lower mass can reduce stiffness or impact margin, alter fit, or move a failure into a snap, boss, seal or fastening feature.
Build the business case on accepted parts, not theoretical mass. Include planned yield, startup scrap, runner loss, color changes, drying or conditioning, inspection, packaging and freight where they differ between concepts. Keep one-time engineering and tooling changes separate from recurring conversion cost. This lets procurement see whether a material saving is offset by a longer cycle, a lower yield, additional inspection or a tool modification.
02
2. Material cost: calculate the resin decision, not only density
A simple recurring material estimate begins with approved material price multiplied by the material consumed per accepted part. Material consumed is not always net part mass: runners, purge, startup scrap, planned process loss and rejected parts may matter. For a multi-cavity tool, calculate the complete shot and divide by accepted output using the agreed yield. Ask the supplier to state whether regrind is permitted, at what controlled proportion, and how that policy affects the price and validation boundary.
A lower-density grade may reduce mass but can require more volume to fill the same geometry. Glass or mineral reinforcement can improve stiffness or strength in a preferred direction while increasing resin price, anisotropic shrinkage, fiber-related warpage, surface variation, tool wear or processing controls. Moisture-sensitive materials may add drying equipment, handling time and lot controls. Compare exact grades and fiber loading under the intended environment; a datasheet density or tensile value is not proof of finished-part performance.
Require evidence for any material substitution: exact grade and supplier, technical data, processing window, shrinkage and flow information, conditioning method, lot traceability, color route, permitted alternatives, and application-relevant test plan. The customer specification controls whether a substitute is allowed. Do not treat an unapproved commodity resin, generic ‘engineering plastic’ or unverified recycled content as an equivalent cost option.
| Cost input | What can change when the part is lightened | Supplier evidence to request |
|---|---|---|
| Net part and total shot mass | Coring or thinner sections may reduce net mass, while a larger runner or added process loss may offset it. | Before/after mass calculation, shot breakdown, measurement method, cavity basis and yield assumption. |
| Resin grade and loading | Density, price, flow, stiffness, impact, shrinkage, warpage, tool wear and drying needs can move together. | Exact grade, supplier data, filler percentage, lot controls, processing guidance and approved-substitute route. |
| Scrap and regrind | A more sensitive thin-wall or cosmetic design may narrow the process window or change recoverable material policy. | Planned yield, startup and changeover loss, regrind limit, defect categories and reaction plan. |
| Volume and purchasing | A resin price break or larger minimum order may not offset low demand, inventory exposure or special handling. | Volume scenarios, currency and validity, minimum order, lead time, storage controls and price-change assumptions. |
03
3. Cycle economics: thinner is not automatically faster

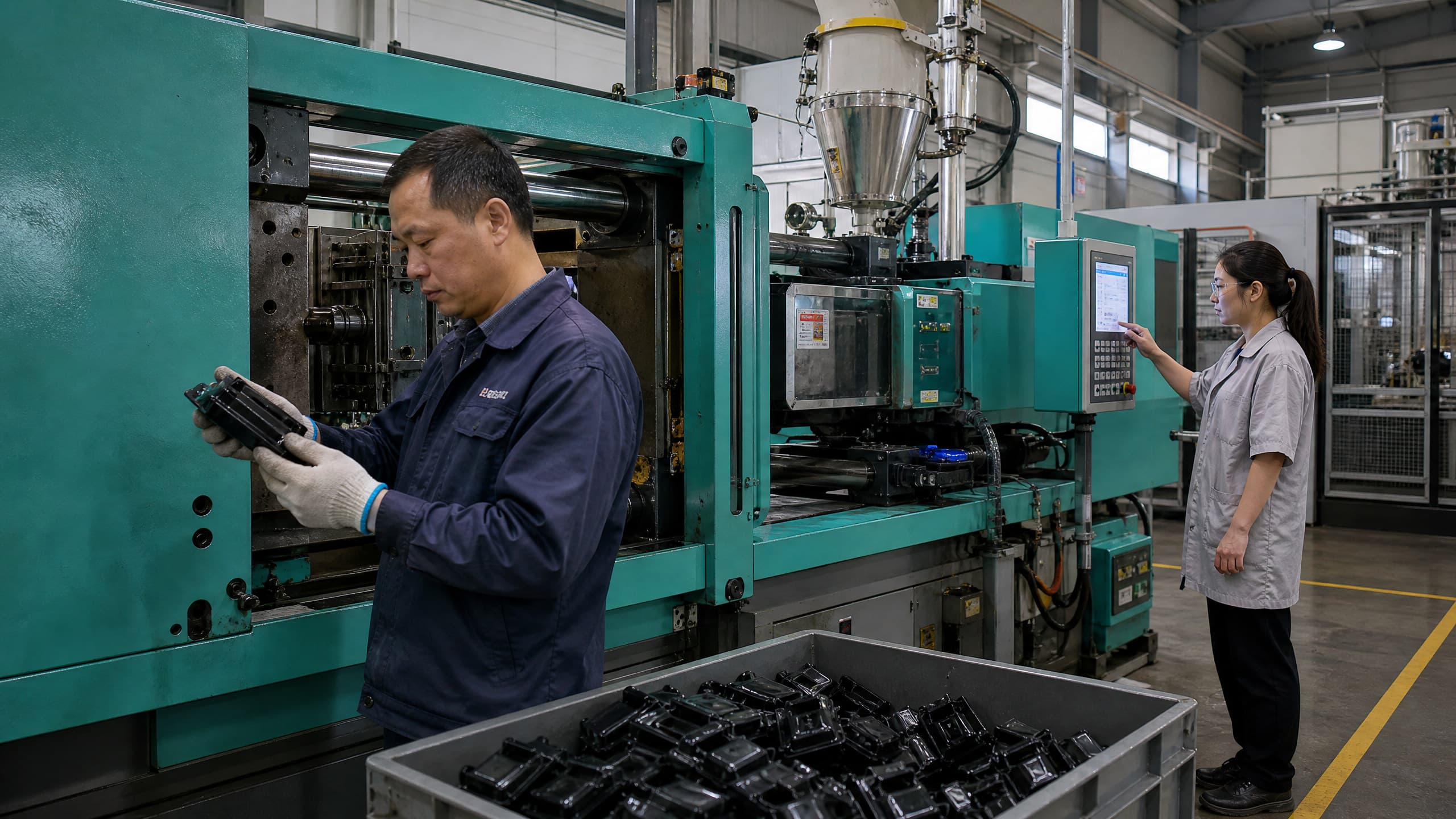

Cycle cost is driven by the time and resources needed to produce an accepted shot: injection, packing, cooling, screw recovery, mold opening, ejection, handling, inspection and any manual or automated steps. Removing a thick section may reduce cooling demand, but a thin or long-flow design can require higher pressure, a different gate, more packing control, slower filling, extra ejection care or a wider quality study. If cooling is not the bottleneck, a predicted cycle reduction may be immaterial.
Ask for the proposed cycle broken into stages, the machine and mold assumptions, cavity count, parts per shot, operator content, automation, temperature settings, and evidence from a stable trial. Cycle time is a process result for a specified resin, geometry, tool, machine and acceptance condition—not a universal property of ‘lightweight molding.’ Compare accepted output per hour and planned yield, not a cycle number stripped from its quality context.
Lightweighting can also affect dimensional stability. Wall-thickness changes alter heat flow, shrinkage and warpage; fiber orientation can make directional behavior more pronounced. Require a process-risk review covering fill, pack, cooling, ejection, sink, voids, weld lines, flash, distortion and critical interfaces. Simulation can prioritize risks, but trial parts and customer-defined tests close the approval decision.
04
4. Tooling and validation: price the changes that make the concept producible

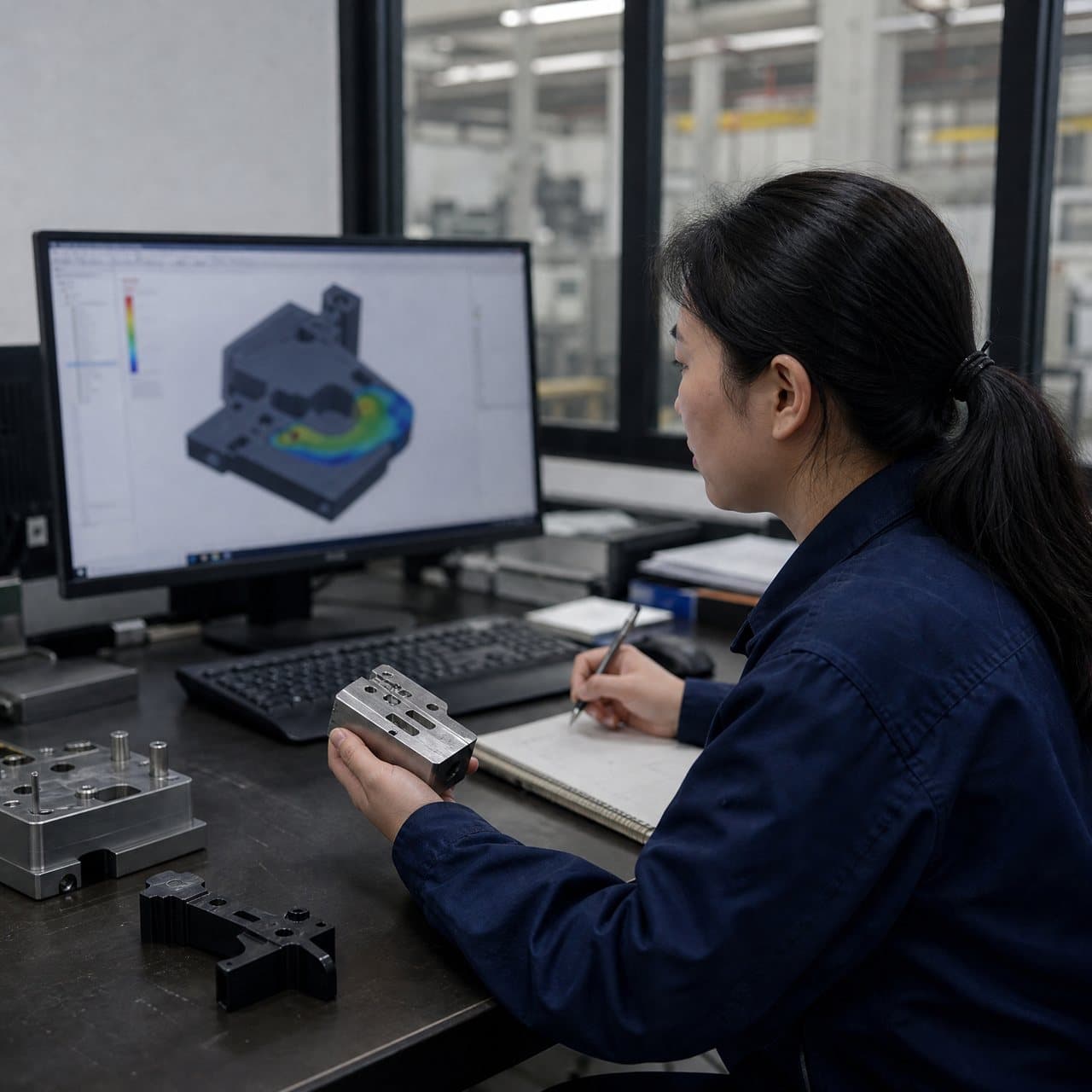

A lightweight concept may be inexpensive before tool release and expensive afterward. Cored sections, revised ribs, new draft, relocated gates, added vents, cooling changes, slides, inserts, steel-safe areas or a new cavity can alter tool design and maintenance. A material change may require hardened steel, different surface treatment, revised shrink compensation, drying controls or new process capability work. Ask the supplier to state whether the proposal is a CAD-only change, an insert change, a steel modification, a new mold or a new validation program.
Tooling cost should be separated into design, manufacture, modification, trials, metrology, fixtures and approved engineering changes. Recurring cost should separately identify resin, cycle, labor, yield, inspection, secondary operations and packing. Request the assumptions behind tool life, cavity balance, runner strategy, maintenance and spare parts. A lower part price can be misleading if tool modification, sampling or quality evidence has been excluded.
Use approval gates. Gate 1 freezes the baseline and requirements. Gate 2 selects the concept after material, structural, mold-flow and commercial comparison. Gate 3 authorizes steel, resin or process changes after named engineering, procurement and quality owners approve cost, schedule, risk and verification. Gate 4 releases production after actual mass, dimensions, appearance, function, material identity and agreed process evidence are reviewed. For critical applications, follow the customer’s product validation and compliance plan; this guide does not create one.
05
5. Compare supplier quotations on total cost and evidence
Send every bidder the same controlled RFQ package and request a normalized response. The quote should identify the part revision, exact resin, mass basis, volume scenario, cavity count, runner method, target machine, cycle assumption, yield, tool scope, inspection, packaging, logistics, validation, change-control terms and exclusions. Ask suppliers to show sensitivity for volume, resin price, cycle, scrap and tool modification rather than offering a single unsupported saving percentage.
For procurement, the decision metric may be total landed cost or total program cost rather than piece price. Include amortized tooling where appropriate, engineering changes, freight, duties, inventory, supplier development, inspection and the cost of a rejected or delayed launch. For engineering and quality, confirm that the same price comparison preserves stiffness, impact, shrinkage, warpage, dimensional capability, cosmetic criteria and environmental performance. The cheapest concept is not acceptable if it relies on an unapproved material or an incomplete evidence package.

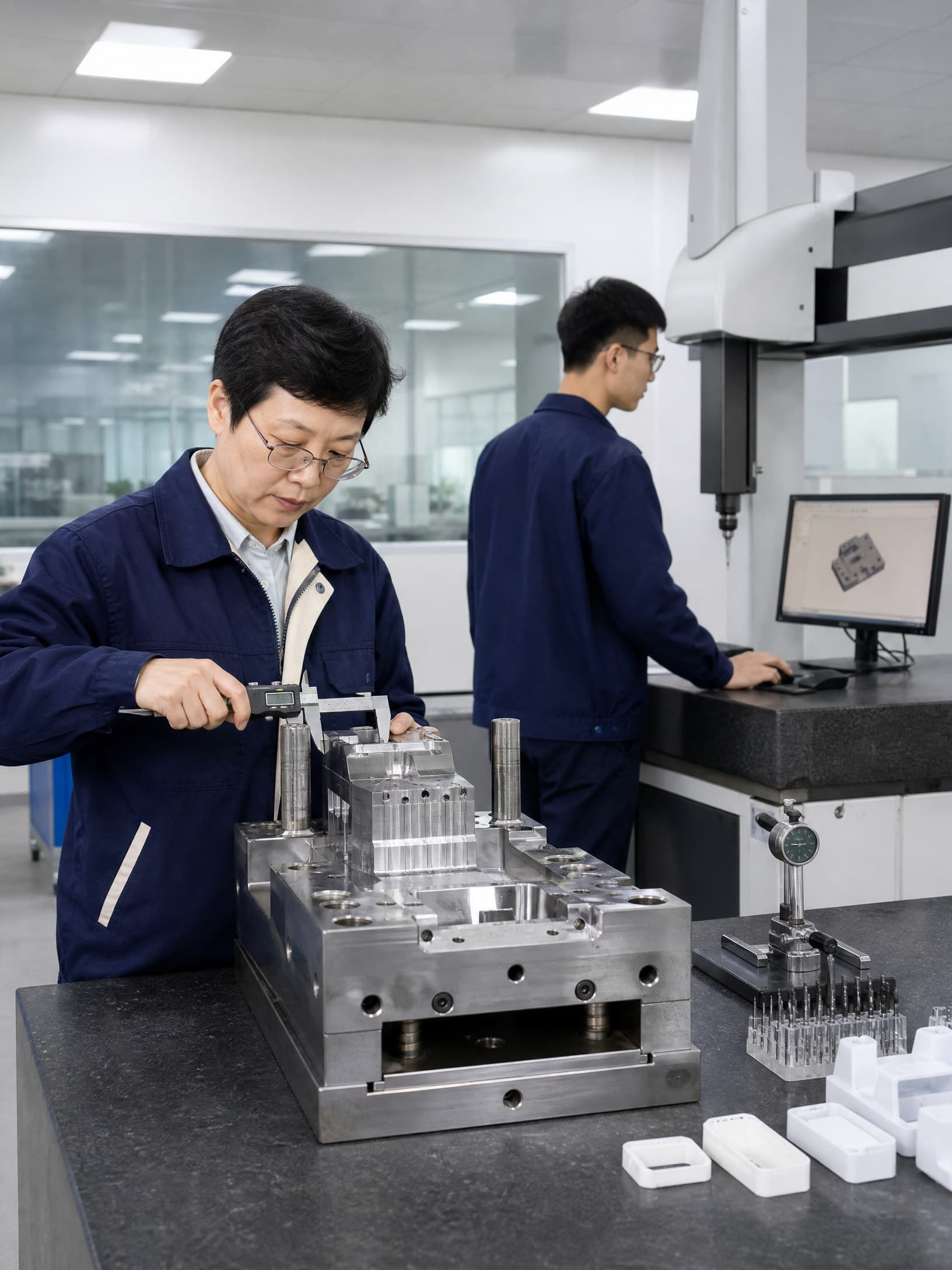

Request supplier evidence in a traceable pack: marked-up CAD and sections, material certificates or lot records as applicable, mass and shot calculations, DFM and mold-flow assumptions, trial settings, cavity identification, dimensional and visual results, functional test data, capability evidence for named CTQs, and deviations with disposition. Calibrated measurement alone does not prove product fitness. Final approval remains with the customer and the agreed specification.
Practical takeaway
Before you move
to the next review.
- Freeze the baseline part revision, exact resin and loading, mass measurement method, volume scenarios, service environment, CTQs and customer change authority before requesting lightweight quotations.
- Require each supplier to separate material, shot loss, cycle, yield, tooling, validation, inspection, logistics and one-time engineering assumptions in the cost model.
- Compare candidate materials and geometries for stiffness, impact, shrinkage, warpage, appearance, processing and environmental fit; do not approve on density or tensile data alone.
- Use approval gates before steel changes, resin substitution or production release, with named engineering, procurement and quality owners and documented open risks.
- Retain trial and production evidence linking actual mass, material lot, cavity or tool identity, process conditions, dimensional results, functional tests and deviations to the released revision.
FAQ
Common questions
Does reducing part weight always reduce injection molding cost?
No. Lower net mass can reduce resin consumption, but tooling changes, higher resin price, longer filling or validation, lower yield, added inspection and altered logistics can offset or exceed that benefit. Compare total cost for the same approved function, volume, quality scope and material boundary.
How should buyers calculate material cost for a lightweight molded part?
Use the approved resin price and the complete material consumed per accepted part, including the agreed runner, purge, startup loss, scrap and regrind policy. For multi-cavity tools, calculate the shot and divide by accepted output. Require exact grade, loading, yield and measurement assumptions from the supplier.
Can thinner walls reduce cycle time as well as part weight?
Sometimes, but not universally. Cooling may decrease, while filling pressure, packing, gate design, warpage risk, ejection difficulty or quality studies may increase. Validate the stable cycle on the specified resin, geometry, mold, machine and acceptance criteria; do not use a generic cycle-time promise.
What should an OEM request before approving a lightweight tooling change?
Request controlled CAD and sections, before-and-after mass and shot calculations, exact material data, DFM and tooling impact, cycle and yield assumptions, risk analysis, cost and schedule changes, and a gate-specific verification plan. Before production release, review actual molded-part mass, dimensions, appearance, function, material identity and any customer-required validation.
References
Source material
- [1] ISO — ISO 20457:2026 Plastics moulded parts: Tolerances and acceptance conditions
- [2] ISO — ISO 527-1:2019 Plastics: Determination of tensile properties
- [3] ASTM International — ASTM D955 Standard Test Method for Shrinkage from Molds for Thermoplastics
- [4] NIST — Metrological Traceability
This guide is general information for early procurement and engineering discussion. It does not replace product-specific DFM, qualification, validation, regulatory assessment or legal advice.
