Transparent Injection Molded Windows and Light Pipes: OEM Buyer Guide

Transparent injection molded windows and light pipes are not interchangeable clear-plastic parts. A window normally protects or exposes a display, sensor or indicator, while a light pipe redirects light from an LED to a controlled viewing area. For an overseas OEM, the buying decision should start with the optical function, visible zones, assembly stack and environment, then move to the exact resin grade, geometry, tool concept and inspection method. Clarity by itself is not a complete acceptance criterion.

At RFQ, separate customer requirements from supplier recommendations. Requirements may include a transmission or illumination result, viewing angle, envelope, seal, impact condition, temperature range, cosmetic zone or drawing tolerance. Recommendations may include a candidate resin, gate position, polish, texture, draft or tool steel. The final answer remains dependent on resin, geometry, tooling, machine, process window, environment, production volume and customer specifications.

Ask suppliers to prove the finished part in the intended assembly. A visually clear sample can still produce poor light coupling, hot spots, leakage, distortion, stress marks, fit problems or unacceptable variation when installed behind a bezel or over an LED.

1. Decide whether the part is a window, light pipe or hybrid optic

Define the job before selecting material. A transparent window may need environmental separation, impact resistance, scratch resistance, sealing, display readability or sensor transmission. A light pipe adds optical control: it collects light at an input, redirects it through internal geometry and releases it at a viewing surface. A hybrid part may combine a protective window with a shaped light guide, but each zone should have its own requirement and inspection logic.

Map the optical path in the controlled CAD and assembly drawing. Show the LED package, source-to-input gap, reflector or shroud, light-pipe features, output face, bezel, gasket, PCB, fasteners and any neighboring surfaces that can leak or reflect light. State the source type, intended color or wavelength, drive condition, viewing direction and whether the requirement concerns presence, uniformity, brightness, color, transmission, diffusion or image quality. Do not ask a supplier to infer these from a part name such as ‘clear indicator.’

A recommendation is to review an optical cross-section before tooling. It can reveal whether the proposed part is relying on total internal reflection, a polished or textured output face, a diffusing feature, mechanical retention or a separate reflector. The supplier may propose changes, but the product owner should approve any change that affects the optical function, visible appearance, sealing or assembly envelope.

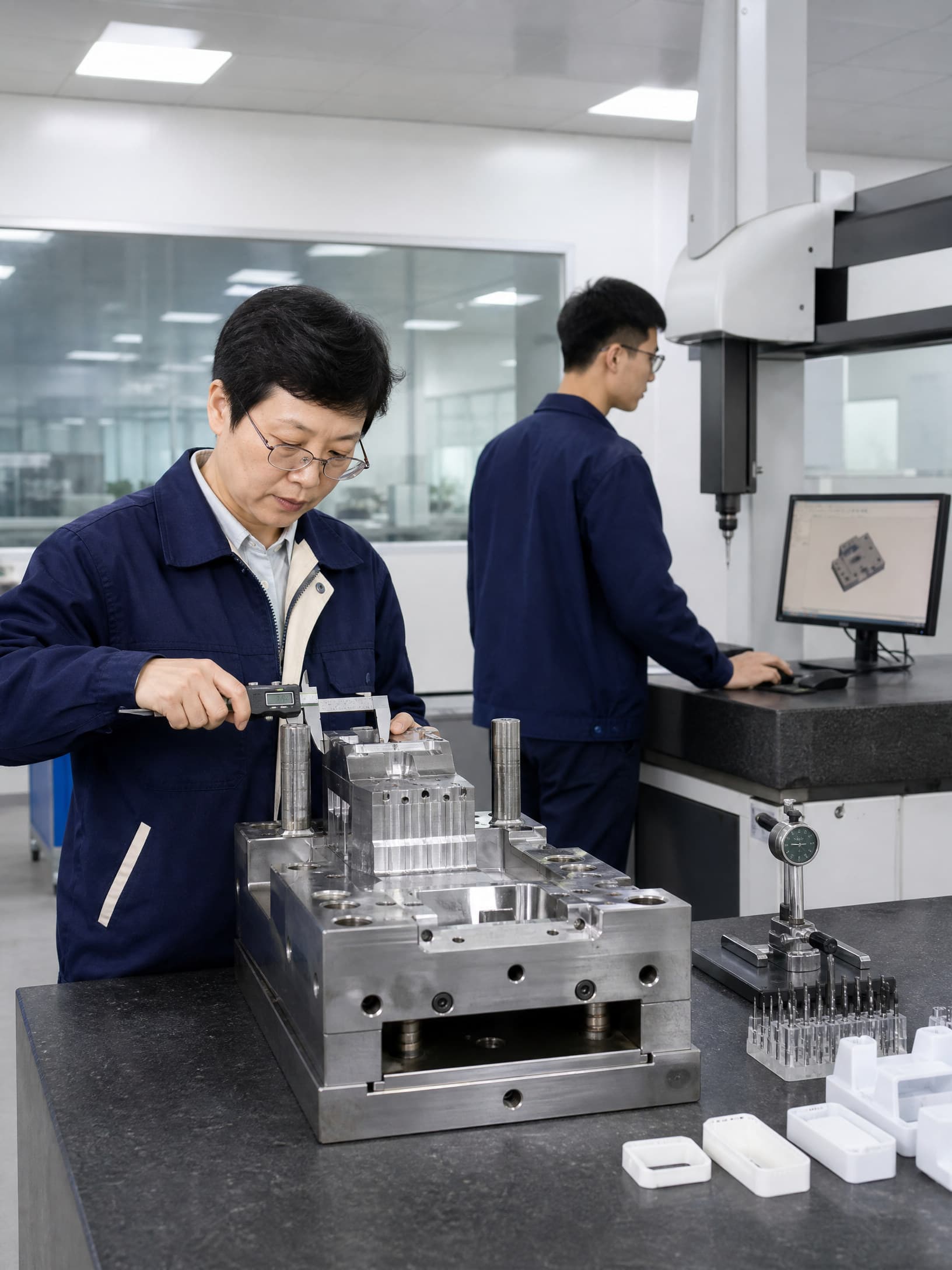

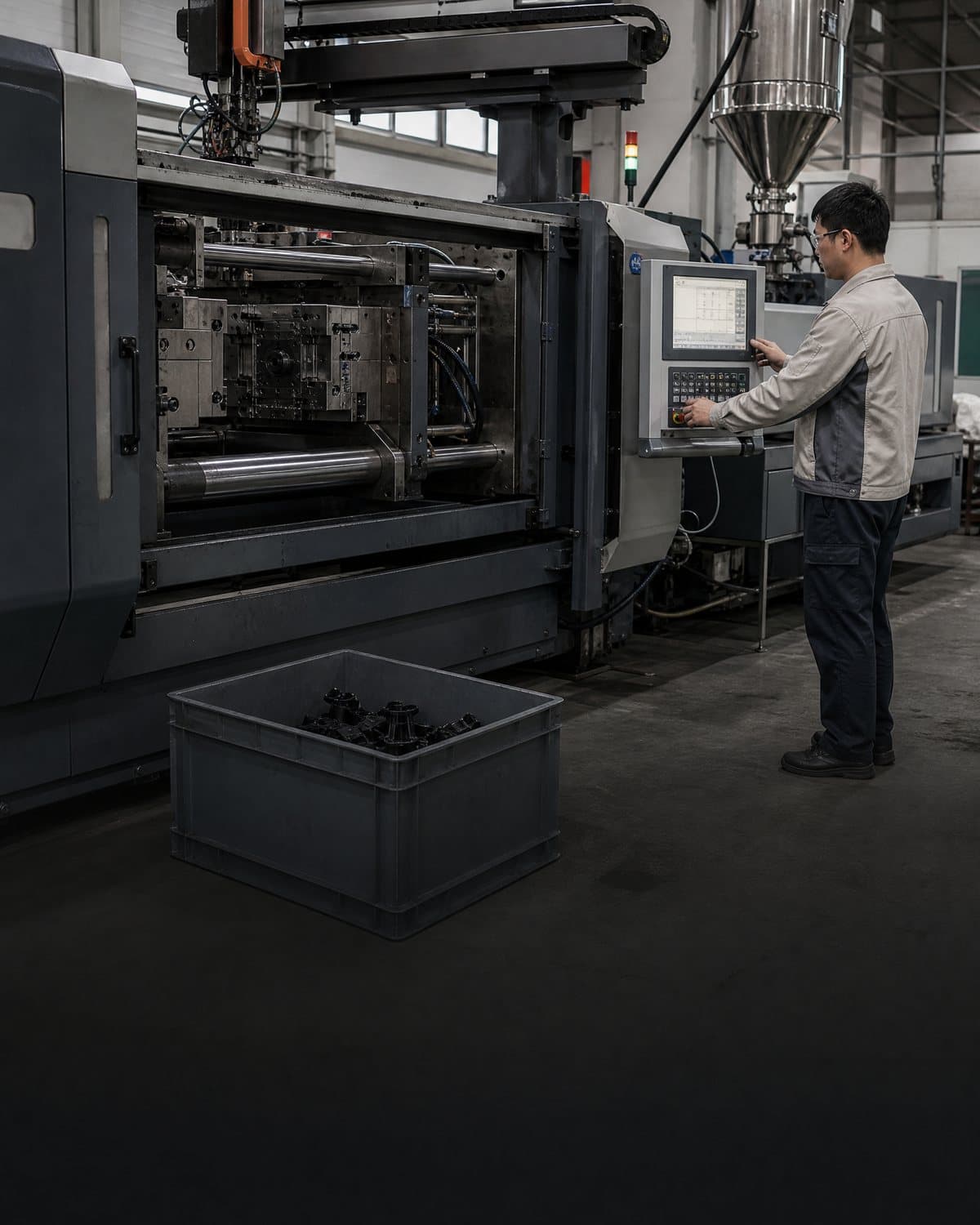

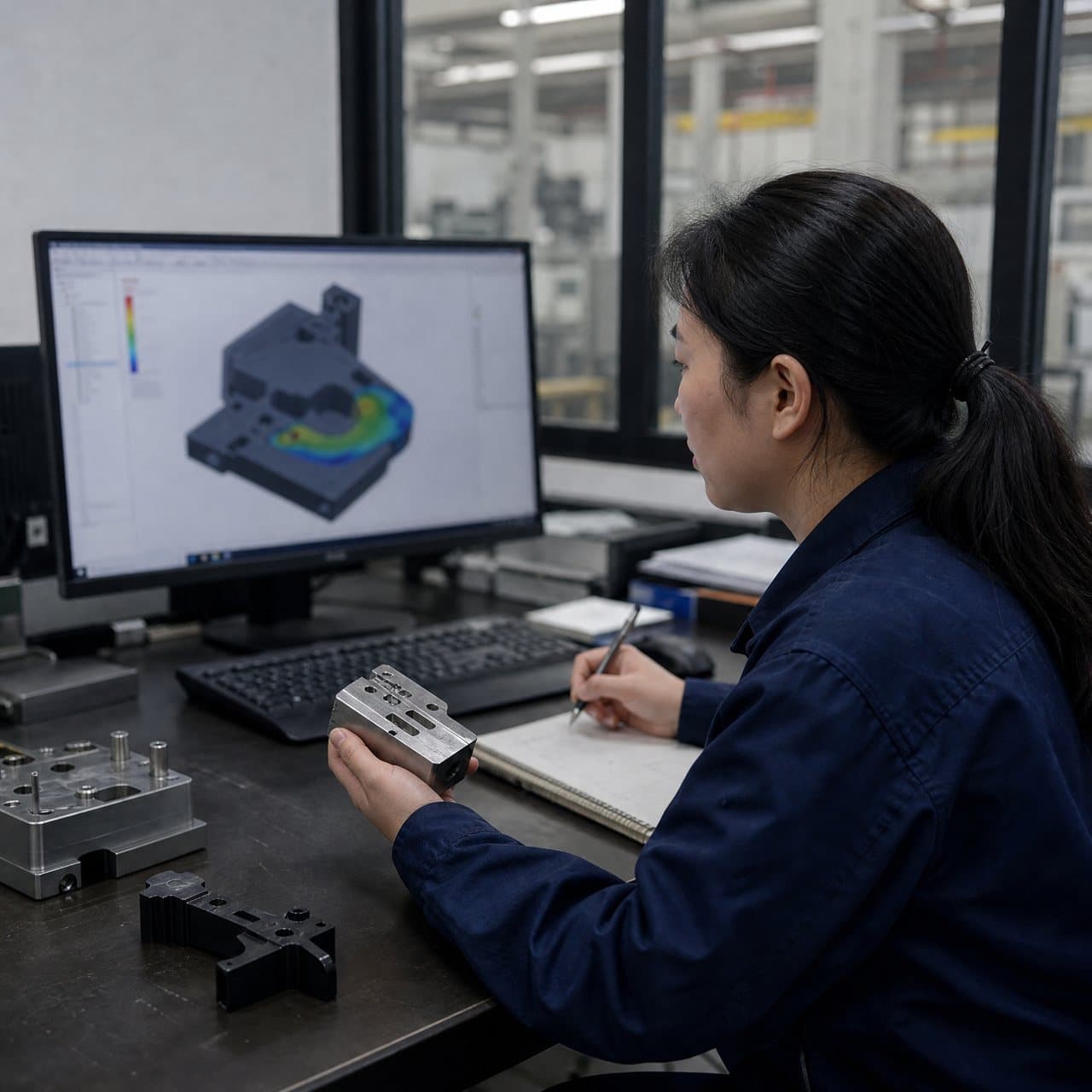

Illustrative injection molded product and engineering review visual — Illustrative visual for engineering discussion; it does not depict an InjeForm customer part, facility, or production result.

2. Select the resin and geometry against the actual service case

PMMA, polycarbonate, COP/COC and other transparent systems can be candidates, but a polymer family is not a material approval. Compare exact grades for impact, heat, humidity, chemical exposure, UV, stress cracking, birefringence sensitivity, flow, shrinkage, surface replication and supply continuity. Additives, colorants, diffusion packages, recycled content and flame-retardant formulations can change optical and processing behavior.

Requirements should identify operating temperature, cleaning agents, outdoor exposure, pressure or impact, assembly stress, expected service duration, allowable optical change and customer or market obligations. Recommendations may include a thicker protective window, a different light-pipe entry feature, a fillet, a draft change or a different finish. Confirm the final design with molded samples from the proposed resin and tool concept rather than with a resin datasheet alone.

Geometry affects both light behavior and molding risk. Long narrow pipes can be sensitive to fill balance, weld lines, air traps and dimensional movement. Sharp optical transitions can concentrate stress or become difficult to polish and release. Window surfaces may need a controlled polish, texture or coating, while light-pipe surfaces may intentionally use different finishes. Mark optical faces, non-show faces, gate-vestige areas, ejector locations and permitted witness zones on the drawing.

Part route	Typical buyer objective	Risks to review	Evidence before approval
Flat or curved transparent window	Protection, viewing or transmission through a defined aperture	Haze, distortion, scratches, stress, seal fit, impact and warpage	Material evidence, dimensional report, appearance standard and assembled viewing check
Single-output light pipe	Move LED light to a remote indicator or button	Poor coupling, leakage, hot spot, low output, sink or retention interference	LED-and-bezel assembly sample, illumination check and interface measurement
Multi-output light pipe	Distribute one or more sources across several indicators	Uneven brightness, cross-talk, tolerance stack and source-to-source variation	Defined drive condition, output-zone map, repeatability sample and assembly test
Window/light-pipe hybrid	Combine protection and controlled illumination in one component	Conflicting surface finishes, difficult tooling, sealing stress and cosmetic exposure	Optical cross-section review, tool concept, first-article inspection and system validation

3. Control tooling, surface finish and molding risks early

Transparent parts make ordinary molding evidence more visible. Flow lines, weld lines, splay, bubbles, voids, black specks, gate marks, ejector witnesses, scratches and handling contamination may affect appearance or optical output. Their acceptability depends on location and function; a concealed non-optical surface is not equivalent to a customer-facing window or output face. Define zones, lighting, background, viewing distance, part orientation and cleaning condition in the inspection instruction.

Gate and vent strategy deserve early review. A gate placed on an optical face may leave a witness or disturb light distribution; a remote gate may increase flow length, weld-line risk or packing variation. Ejectors, parting lines, slides and inserts should be mapped against show surfaces and optical interfaces. For a light pipe, the tool may need different polish or texture decisions for input, reflecting and output areas. Do not treat ‘mirror finish’ or ‘optical polish’ as a complete specification without a reference, zone map and acceptance method.

Ask for a supplier DFM package that identifies resin assumptions, flow direction, gate and vent proposal, tool surface treatment, ejection, cooling, expected shrinkage behavior, optical-feature risk and any steel-safe dimensions. A quoted cycle time, tolerance, price or cavity count is a project assumption unless confirmed against the named machine, tool, resin, volume and customer specification.

4. Specify inspection and assembly evidence, not just visual clarity

A useful control plan separates appearance, dimensions and optical function. Appearance may require an approved master sample and defined defect classes. Dimensional inspection should identify datums, fixture, part condition, cavity, sampling plan and measurement method. Optical inspection should state the source, drive condition, wavelength or color where relevant, alignment, ambient conditions, camera or instrument, output zones and pass/fail rule. A generic statement such as ‘clear and bright’ cannot resolve a supplier dispute.

ASTM D1003 describes haze and luminous-transmittance methods for transparent plastics, but a complex curved window, patterned light pipe or assembled optic may need a different method. Use a standard only when its scope and specimen setup fit the part, and document any customer-specific method that supersedes default conditions. Measurement results should be traceable to a suitable calibrated method; a single reading near a limit may require review of fixture, conditioning, repeatability and uncertainty.

Test the assembled stack as well as the loose part. Check fit, gasket compression, button travel, LED alignment, light leakage, hot spots, readability, color or uniformity under the agreed drive condition, and any required temperature, humidity, chemical, UV, impact or cleaning exposure. The product team—not a generic supplier claim—decides which product-level validations are required.

5. Use staged supplier approval gates for sourcing and release

Gate 1 is requirements alignment: approve the controlled CAD and drawing, optical function, visible zones, material direction, environment, volume, assembly interfaces, test method and open questions. Gate 2 is DFM and tool-concept approval: resolve gates, parting line, polish or texture, venting, ejection, cooling, cavity identification, tool ownership and sample plan. Gate 3 is traceable sampling: review material identity, molded appearance, dimensions, assembly fit and optical results against the agreed revision.

Gate 4 is qualification or customer release. Complete the required system, environmental, durability, optical and regulatory checks for the actual product before production authorization. Set change triggers for resin grade, additive package, color, tool steel, cavity, gate, optical surface, process location, secondary operation, packaging or inspection method. Any proposed deviation should have an owner, disposition and reapproval route.

For supplier comparison, request the same evidence from each bidder: named resin and alternatives, DFM assumptions, optical risk list, tool concept, inspection proposal, sample quantity, validation responsibilities, lead-time basis and commercial exclusions. Ask what is already demonstrated and what remains contingent. This makes a low quote, a polished sample and a capability statement comparable without treating any of them as production proof.

Practical takeaway

Before you move
to the next review.

Define whether each feature is a protective window, light pipe, diffuser, lens or hybrid, and state the measurable function of every critical zone.
Provide controlled CAD, datums, optical cross-sections, LED or sensor interfaces, visible surfaces, environment, assembly stack, volume and customer-specific requirements.
Ask bidders to identify the exact resin grade, additives or colorants, gate and vent strategy, surface finish, ejection plan, tool assumptions and known optical risks.
Agree appearance, dimensional and optical inspection methods before sampling, including conditioning, illumination or drive condition, fixture, zones, sampling and acceptance authority.
Release production only after traceable samples, assembly and required product-level validation are accepted, with documented change-control triggers and deviation ownership.

FAQ

Common questions

What is the difference between a transparent molded window and a light pipe?

A window primarily protects or exposes an aperture while allowing viewing or transmission. A light pipe is shaped to collect, redirect and distribute light from a source to a defined output area. A hybrid may perform both functions, but its optical, cosmetic, dimensional and assembly requirements should be specified by zone rather than assumed from the word ‘clear’.

Which plastic is best for injection molded windows and light pipes?

There is no universal best plastic. PMMA, polycarbonate, COP/COC and other transparent grades may be candidates depending on impact, heat, UV, chemicals, optical target, geometry, stress sensitivity, volume and customer requirements. Select the exact grade with the supplier and resin documentation, then validate molded parts in the intended assembly.

Can a supplier approve a light pipe by checking visual clarity alone?

Usually not. Visual clarity may address appearance, but it does not prove coupling, output uniformity, brightness, leakage, color, viewing angle, LED alignment or assembled performance. Define the source and test condition, output zones, fixture and acceptance rule, then check the finished part in the relevant assembly.

What should an OEM request before releasing a transparent optical mold?

Request a controlled DFM review, exact resin and additive proposal, optical cross-section, gate and vent plan, surface-finish and ejection map, dimensional and appearance criteria, optical test method, first-article plan, material traceability and change-control route. Production release should follow traceable samples and any customer-required assembly, environmental or product validation.

References

Source material

This guide is general information for early procurement and engineering discussion. It does not replace product-specific DFM, qualification, validation, regulatory assessment or legal advice.
