Injection Molded Color Matching and Masterbatch Control: A Buyer Guide

For an overseas OEM, color matching is not simply a request to make a molded part look like a swatch. The visible result depends on the resin family and exact grade, masterbatch or pre-colored compound, pigment loading, surface texture, wall thickness, gate and flow direction, mold temperature, machine settings, drying, lighting and the agreed viewing method. A color approval that works on a flat plaque may not transfer to a textured, ribbed or fiber-filled production part. The procurement decision is therefore whether the supplier has a controlled color system and enough evidence to reproduce the approved appearance at the required volume.

Start with a controlled color target, defined acceptance method and named material route. Separate requirements—such as a customer color standard, a critical cosmetic zone or a measured color difference limit—from recommendations, such as a preferred masterbatch supplier or gate location. Keep the approved resin, colorant, tool, process window and change-control rules linked to the part revision.

Decision rule: approve a color system only after the supplier demonstrates the proposed resin and masterbatch on representative geometry under an agreed light source, measurement method, surface condition and production-intent process.

1. Define what ‘color matched’ means before the RFQ

A requirement should identify the controlled color reference, part or zone covered, viewing condition, surface finish, acceptable visual difference and approval owner. The reference may be a customer-supplied physical standard, a recognized color system, a digital target or an existing approved part, but each has limitations. A digital value is not a complete appearance specification because gloss, texture, translucency, metamerism and surrounding colors influence perception. Record the reference revision, storage condition and chain of custody.

Recommendations can then address the colorant route. A supplier may recommend a pre-colored resin for tighter batch control, a let-down masterbatch for flexibility, or a custom color concentrate when volume and shade complexity justify development. None is universally best. The choice depends on resin compatibility, annual volume, minimum order quantities, cleaning and purging, recycled-content policy, filler loading, processing temperature and the customer's change-control expectations.

Define whether color is functional, brand-critical or primarily aesthetic. For functional applications, also specify opacity, light transmission, heat exposure, chemical exposure, UV environment, electrical or flame requirements and any restrictions on pigments or additives. A color pass does not establish mechanical performance, regulatory status or long-term weatherability; those are separate requirements that need their own evidence.

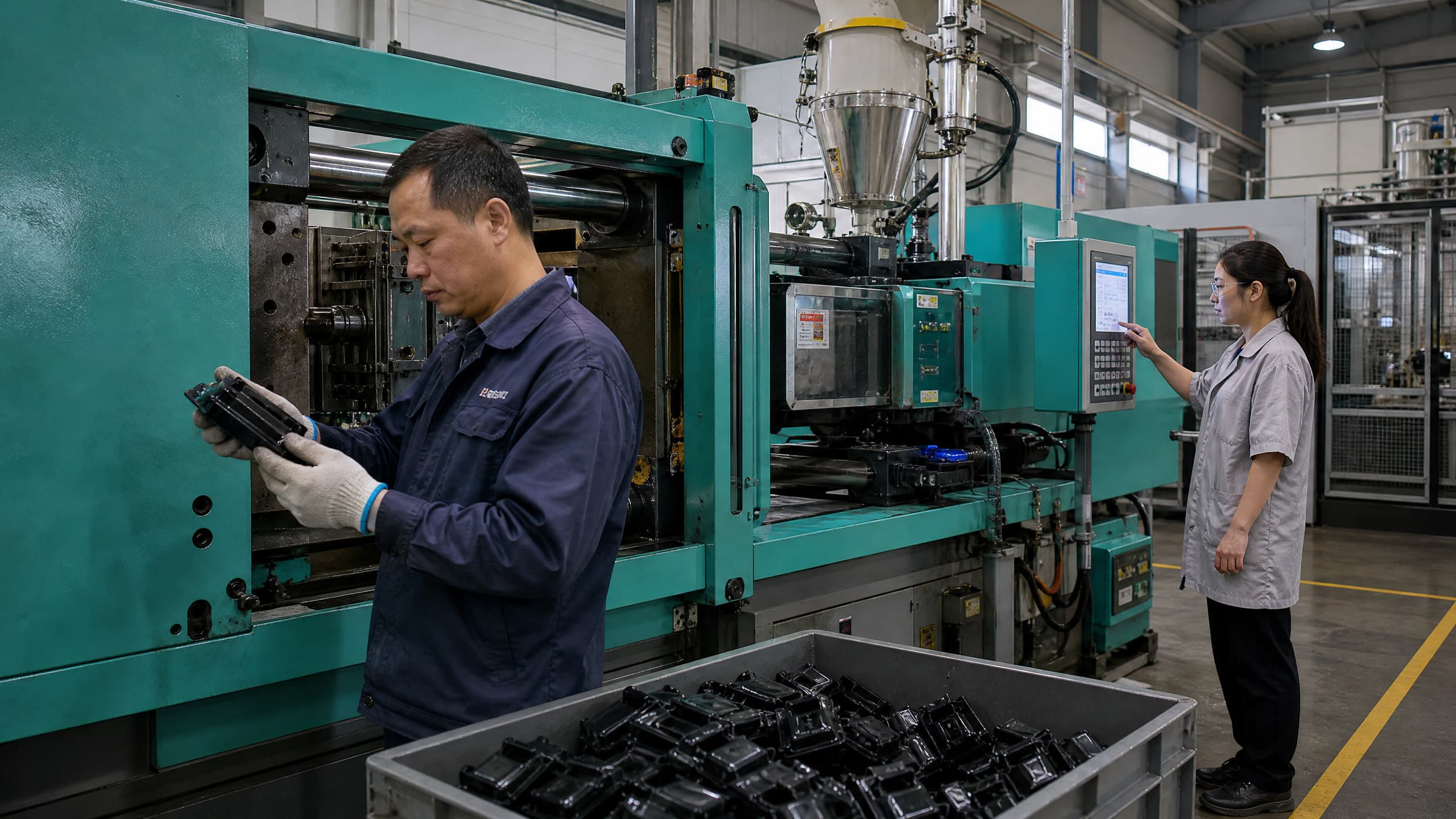

Illustrative injection molded product and engineering review visual — Illustrative visual for engineering discussion; it does not depict an InjeForm customer part, facility, or production result.

2. Compare pre-colored resin, masterbatch and liquid color routes

Pre-colored resin can reduce an operator's dosing step and may support repeatability when the exact compound, supplier and lot are controlled. It can also introduce higher minimum buys, longer lead times, limited shade flexibility or inventory exposure. Masterbatch is a concentrated colorant blended into a natural resin at a stated let-down ratio. It may simplify base-resin sourcing and allow shade adjustment, but dosing accuracy, mixing, compatibility and the base resin's natural variation remain important. Liquid color systems can suit some machines and applications but add equipment, calibration, cleaning and compatibility questions.

Use this comparison as a sourcing framework rather than a ranking. The supplier should name the exact resin grade, colorant product, carrier chemistry, target let-down ratio, dosing method, mixing location, drying requirement and traceability records. A generic statement such as “color masterbatch compatible with PP” is not enough if the approved part uses a particular impact-modified, mineral-filled or flame-retarded grade.

Ask for a cost comparison that includes color development, minimum order quantity, inventory, dosing equipment, purging, scrap, inspection and changeover—not only concentrate price. A lower material price can be offset by shade instability or additional quality checks. Procurement should also confirm who owns the color formula, retained samples and unused concentrate if the program changes.

Color route	Potential fit	Risks to review	Evidence before approval
Pre-colored compound	Programs seeking a ready-to-process named compound and fewer on-machine dosing variables	Minimum order, supply continuity, lot-to-lot variation, storage and obsolete inventory	Exact grade and color code, technical data, lot traceability, retained sample and representative molded parts
Masterbatch in natural resin	Programs needing shade flexibility or a shared natural-resin supply strategy	Let-down accuracy, carrier compatibility, mixing, pigment dispersion, base-resin variation and purging	Colorant specification, dosing calibration, blend calculation, trial data and production inspection plan
Liquid color system	Applications where the machine and dosing equipment are designed for liquid color delivery	Pump calibration, contamination, cleaning, storage, compatibility and equipment dependence	System validation, calibration records, supplier compatibility statement and molded-part evidence

3. Control the variables that change molded appearance

Color can shift when the polymer's optical path changes. Surface texture and gloss alter perceived lightness and saturation; a textured region may appear lighter or darker than a polished plaque. Flow direction, weld lines, fiber orientation, gate blush, sink, burns and trapped gas can create local appearance differences even when the colorant concentration is stable. Wall thickness and translucency can also affect the visual result. Identify cosmetic zones in the drawing and assess them on the actual geometry.

Process control should cover material identification, drying or conditioning where required, resin and masterbatch lot recording, calibrated dosing, blend time, barrel and mold temperatures, injection and holding conditions, cooling, purging and startup scrap. These are control recommendations until the product owner defines which are mandatory, but any variable shown to affect the approved appearance should become part of the released process window. Do not treat a machine setting from a trial as a universal value for another machine, tool or grade.

Measure and inspect under a defined environment. Instrument readings can help detect drift, but the instrument geometry, calibration, aperture, observer angle, illuminant, backing and sample orientation must be stated. Visual approval should use controlled samples and agreed lighting; a pass under one illuminant does not rule out metamerism under another. Compare parts from multiple cavities or locations when the tool has more than one cavity, and retain approved boundary samples where practical.

4. Build a color approval and supplier-evidence gate

At Gate 1, freeze the target and assumptions: approved color reference, revision, surface texture, resin and filler direction, application environment, cosmetic zones, inspection method, sample condition, volume scenario and change owner. Ask the supplier to identify open questions and distinguish measured requirements from recommendations. If the customer has a color difference limit or named instrument method, include the full method rather than only a number.

At Gate 2, review the proposed formulation and process route before production tooling or color release. Request the exact resin manufacturer and grade, masterbatch or compound manufacturer and product code, carrier compatibility rationale, pigment or additive restrictions, target dosage, batch blending method, equipment, drying guidance, cleaning plan, lot traceability and proposed process window. Ask how the supplier will manage a resin, masterbatch, pigment, machine, cavity, tool texture or process change.

At Gate 3, approve representative trial parts using production-intent geometry, tool surface, resin route and process as far as practical. Review visual samples, instrument readings where specified, cavity-to-cavity spread, part-to-part variation, gloss or texture, weld-line areas, assembly appearance and any application tests. At Gate 4, release production only after the approved formula, control plan, inspection records, retained standards, packaging and escalation limits are documented. A plaque, photograph or supplier promise is evidence of a trial—not automatic approval of every future lot.

5. Solve common color problems without guessing at a universal fix

If parts are consistently too light, too dark, too red or too blue, first verify the reference, lighting, instrument setup, sample orientation and material identity. Then check dosing calibration, let-down calculation, pigment dispersion, barrel contamination, drying, residence time and thermal history. Increasing masterbatch is not automatically the right correction: it can change opacity, gloss, cost, dispersion or other material properties. Any formula change should be tested against the approved resin and part, not made by an undocumented operator adjustment.

If variation appears within one part, investigate flow, wall thickness, texture, gate and weld-line effects, local cooling, burn or gas marks and fiber orientation. If variation appears between cavities or lots, compare cavity condition, tool texture, machine, dosing records, material lots, process trends and inspection method. Supplier corrective action should state the suspected mechanism, containment, verification sample, responsible owner and change-control impact.

For a new color or difficult geometry, consider a staged feasibility plaque or representative sample before committing to a final formula. This is a recommendation, not a substitute for production-intent qualification. The final commercial decision should include total color-development effort, supply continuity, minimum buys, scrap, inspection, cleaning, color drift risk and the consequences of a customer rejection. No route should be promised to eliminate variation across all resins, tools, machines or environments.

Practical takeaway

Before you move
to the next review.

Release the controlled color reference, surface texture, cosmetic zones, viewing condition and acceptance method before requesting final samples.
Name the exact resin grade, filler or reinforcement, pre-colored compound or masterbatch product, target let-down ratio and supplier lot-traceability method.
Request dosing calibration, drying and processing assumptions, purge and changeover controls, retained samples and a documented response to out-of-spec color.
Approve representative parts—not only plaques or photographs—across the relevant cavity, tool-texture, lot and process conditions before production release.
Document approval gates and written change control for resin, colorant, pigment, supplier, tool texture, cavity, machine, process window or inspection method changes.

FAQ

Common questions

What is the most reliable way to color injection molded plastic parts?

There is no universal most reliable route. A pre-colored compound can reduce on-machine dosing variables, while a masterbatch blended into a named natural resin can offer flexibility. The suitable route depends on resin compatibility, geometry, surface texture, volume, equipment, supply continuity and customer requirements. Approve it using representative parts, defined lighting and a traceable process rather than a generic color claim.

Can a Pantone or RAL reference guarantee an exact molded-part color?

No. A reference provides a target, but molded appearance also depends on resin, pigment system, texture, gloss, wall thickness, flow, temperature, lighting and measurement method. Treat Pantone or RAL identification as one part of the specification. Agree the physical or digital reference, viewing conditions, tolerances or boundary samples, inspection method and approval owner with the customer and supplier.

How should an OEM control masterbatch dosing in production?

Control starts with the exact masterbatch and resin identifiers, a documented let-down calculation, calibrated dosing equipment, verified blend or mixing behavior, operator checks, lot traceability and retained samples. Define startup, changeover and out-of-spec rules. The acceptable control limits depend on the color, resin, machine and part; do not copy a universal dosing tolerance without part-specific evidence.

Why can parts from the same mold show different shades?

Possible causes include resin or masterbatch lot variation, inaccurate dosing, poor dispersion, moisture, contamination, residence time, temperature, cooling, cavity differences, tool texture, flow direction, wall thickness, weld lines and inconsistent lighting or measurement. Compare records and samples before changing the formula. A supplier corrective-action report should identify the suspected cause, containment, verification method and any required approval or change-control action.

References

Source material

This guide is general information for early procurement and engineering discussion. It does not replace product-specific DFM, qualification, validation, regulatory assessment or legal advice.
